Passthrough Clearance Single Bookcase Doors

Passthrough Clearance refers to the available space within a doorway that allows people, furniture, or other objects to move through safely and comfortably. In the case of a bookcase door, a portion of the doorway is occupied by the door's depth, leaving the remaining area known as "Passthrough Clearance."

In-Swing Bookcase Doors offer a bit more clearance than an outswing door. Please see charts below for both In-Swing and Out-Swing passthrough clearance.

*Important: Max Wall/ Jamb Depth for all In-Swing Bookcase Doors is 6-1/2" No restrictions on outswing doors. More Information

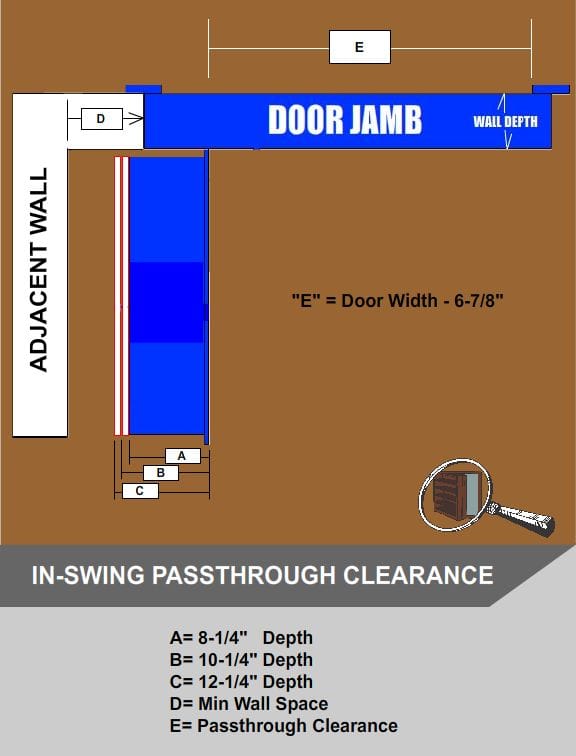

How to Determine Passthrough for In-Swing Doors

  1. Your Door's finished size
  2. Subtract 6-7/8" (6.875) from your doors width
  3. Total=E Passthrough Clearance

Example: 36" wide door -6-7/8" = 29-1/8 (E-Passthrough Clearance)

D: Min adjacent wall clearance needed for A= 1.5" B=3.5" C=5.5" (C: all Bedroom Organizers, Wine Glass, and *Double Sided Doors)

Important: be sure to add 1/2" to "C" for double sided doors

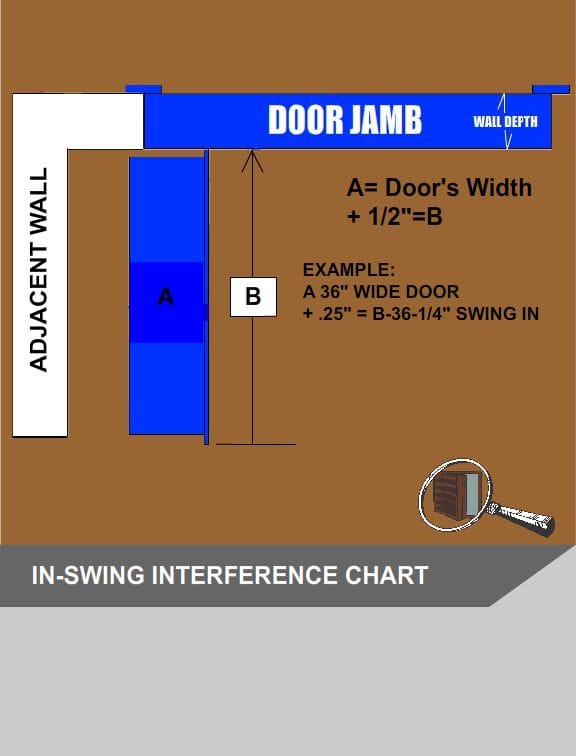

In-Swing Interference Chart

This chart will help you determine how much space you will need to open your Hide-A-Way Door into the room behind your wall. Please note that this is intended as a general guideline and may not be 100% accurate for every type of single door.

Tip: We recommend allowing as much clearance as possible, with a minimum of at least 1 inch.

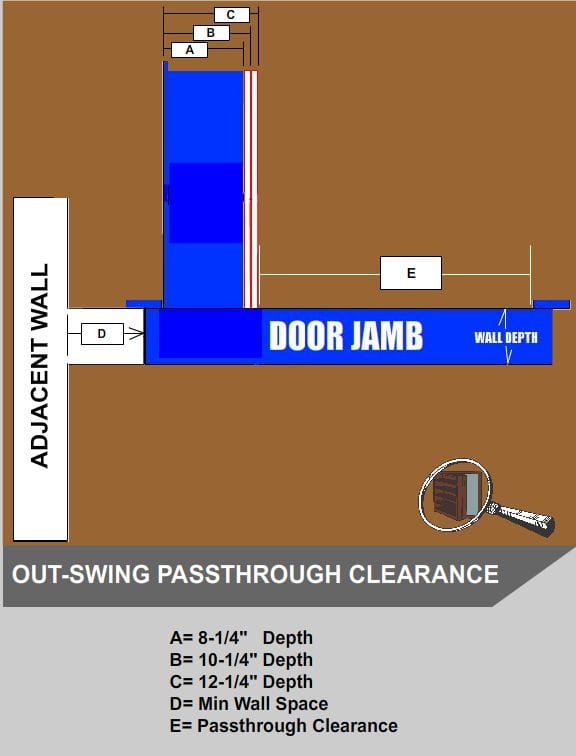

How to Determine Passthrough for Out-Swing Doors

  1. Take your door's finished size
  2. To find "E" for door "A" Subtract door's width by 10"
  3. To find "E" for door "B" Subtract width by 12"
  4. To find "E" for door "C" Subtract width by 14"

Example: for an 8-1/4" Deep Out-Swing Door that is 36" wide the passthrough clearance is 26"

D: Min adjacent wall clearance needed for ABC= 1.5"

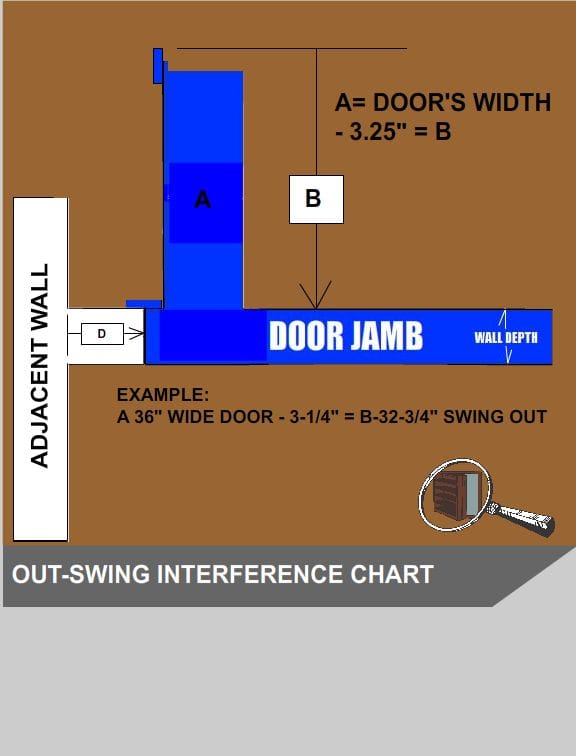

Out-Swing Interference Chart

This chart will help you determine how much space you will need to open your Hide-A-Way Door into the room behind your wall. Please note that this is intended as a general guideline and may not be 100% accurate for every type of single door.

Tip: We recommend allowing as much clearance as possible, with a minimum of at least 1 inch.

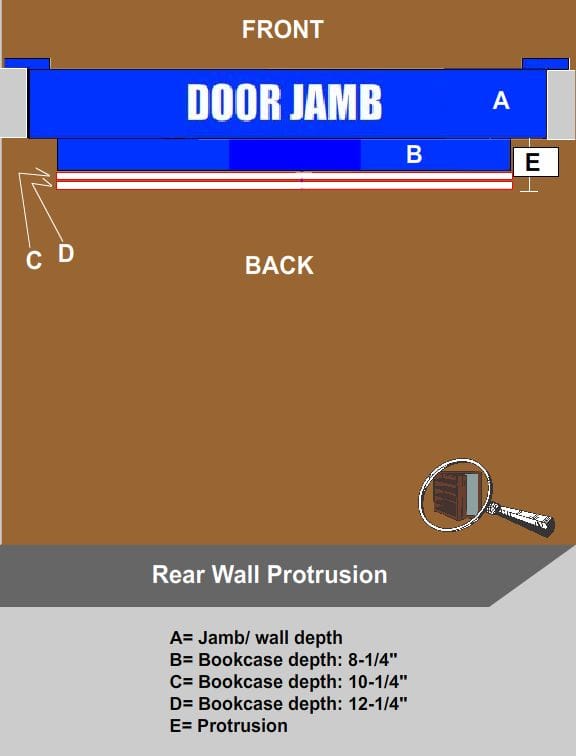

Protrusion

The protrusion refers to the distance that the rear of a bookcase door extends into the room behind it. To calculate  the protrusion (E) you'll take the overall depth of your bookcase (B,C, or D) and subtract your wall depth (A).

Example: You want an 8-1/4" overall depth bookcase that will be installed in a 4-1/2" deep wall. "B" - "A" = "E" (8-1/4"- 4-1/2" = 3-3/4", E= 3-3/4")
